Air Conditioning Systems

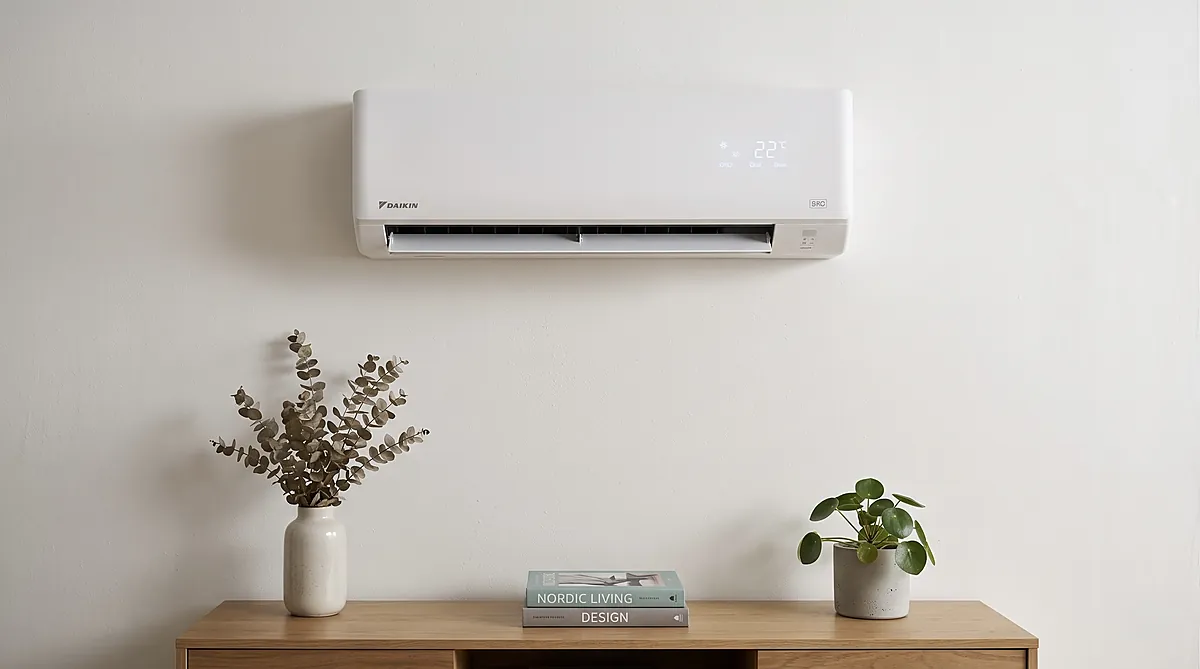

🏠 Residential & Commercial A+++ Inverter β€’ 24/7 Duty Wall-Mounted Split AC unit suitable for homes and commercial offices
View 2K

Wall-Mounted Split

Dual Application β€’ Residential & Commercial

High-efficiency inverter split system delivering whisper-quiet cooling and winter heat pump warmth. The UK's premier choice for bedrooms, lounges, retail shops, surgeries, and private offices.

❄️ Capacity 2.5 – 10.0 kW
⚑ Efficiency A+++ / A++
πŸ”‡ Noise Level From 19 dB(A)
πŸ“± Smart Tech WiFi / Alexa / BMS
Bedrooms Living Rooms Offices Retail Shops

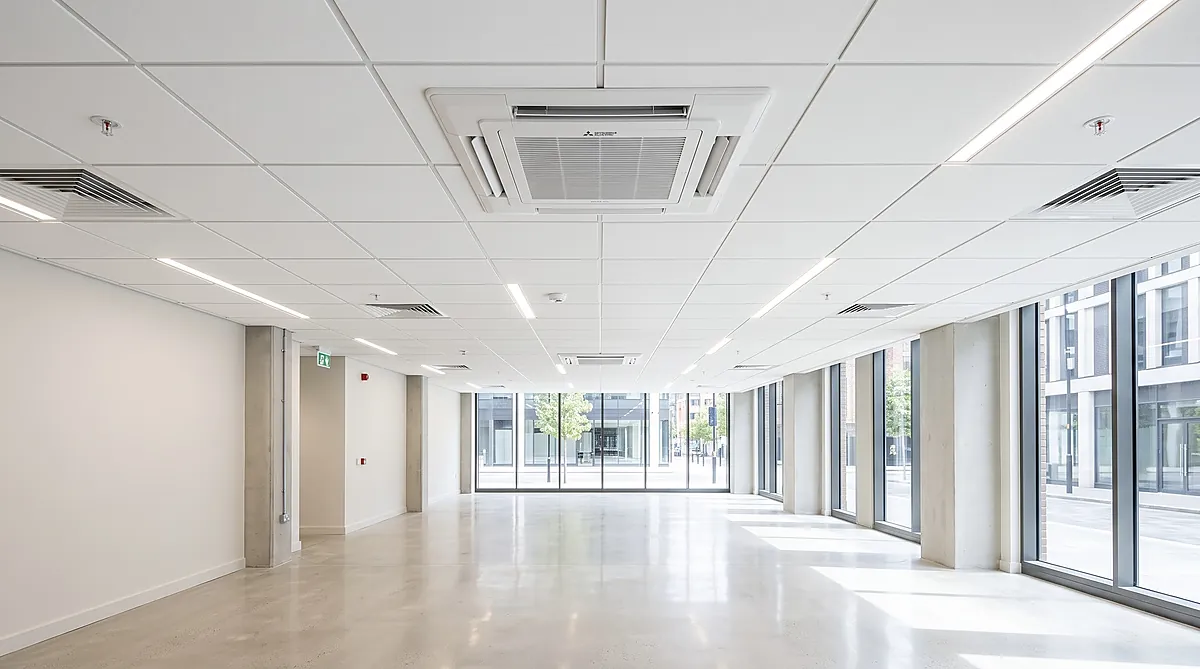

🏠 Residential & Commercial Flush Fit β€’ 360Β° Round-Flow Ceiling Cassette AC unit for open-plan kitchens and commercial spaces
View 2K

Ceiling Cassette

Flush Ceiling Fit β€’ 360Β° Air Diffusion

Installs flush into plasterboard or standard suspended ceiling grids, circulating air evenly in 360 degrees without taking up wall space. Ideal for open-plan kitchens, dining extensions, corporate boardrooms, and restaurants.

πŸ”„ Circulation 360Β° Round-Flow
πŸ“ Dimensions 600x600 / 840x840
πŸ’§ Drain Pump Built-In 850mm Lift
πŸ‘οΈ Sensors Thermal IR Floor
Open-Plan Kitchens Corporate Offices Restaurants Conservatories

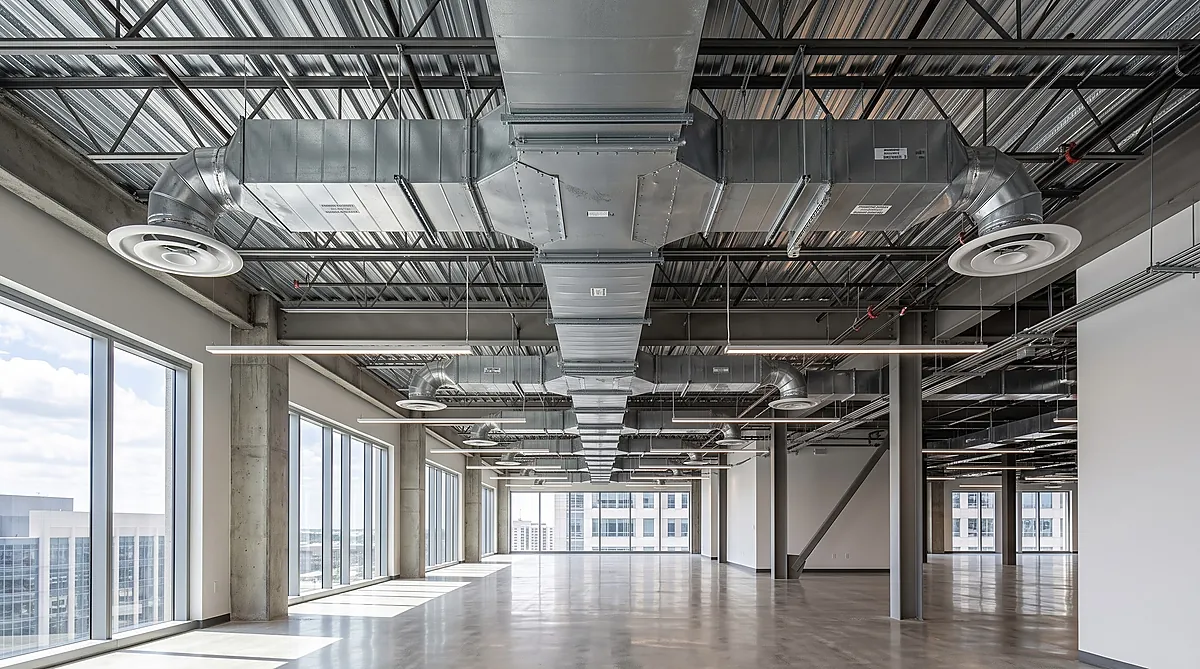

🏠 Residential & Commercial 100% Concealed / Exposed Ducted AC system concealed in ceiling or exposed with architectural ductwork
View 2K

Ducted AC

Concealed Luxury & Exposed Industrial

The ultimate architectural climate solution. Completely hidden inside ceiling bulkheads with slimline linear grilles for luxury homes, or paired with contemporary exposed spiral ducting for modern commercial fitouts.

πŸ’¨ Air Delivery Linear Slots / Spiral
πŸ”‡ Acoustics < 22 dB(A) Silenced
πŸ“ˆ Static Pressure Up to 250 Pa ESP
πŸ›‘οΈ Filtration Central MERV / HEPA
Luxury Homes Modern Offices Gyms & Studios New Builds

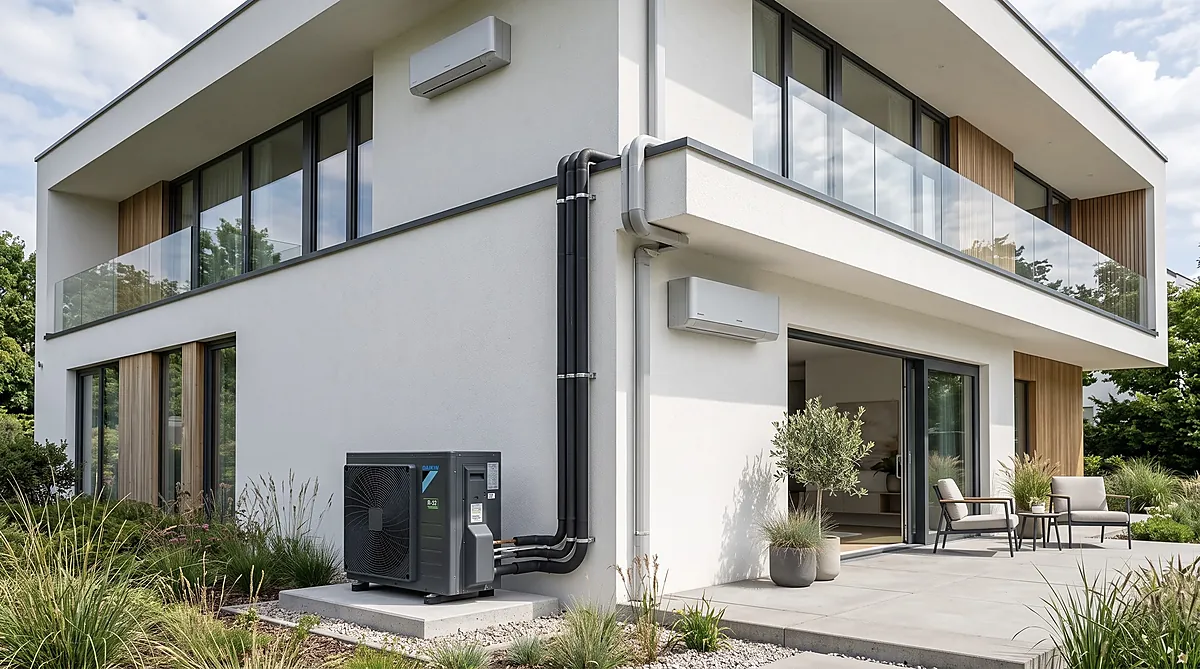

🏠 Residential & Commercial 1 Outdoor : Up to 8 Indoors Multi-Split AC system connecting multiple indoor units to one condenser
View 2K

Multi-Split System

Multi-Room & Multi-Zone Control

Connect 2 to 8 independent indoor units (mix wall-mounts, cassettes, and ducted units) to a single quiet exterior condenser. Tailored individual climate control for multi-room homes, clinics, and boutique offices.

🏑 Connected Zones 2 to 8 Indoor Units
⚑ Outdoor Plant 1 Inverter Condenser
πŸŽ›οΈ Zone Control Independent Stats
πŸ“ Pipe Reach Up to 80m Total Run
Multi-Room Homes Medical Clinics Townhouses Boutique Offices

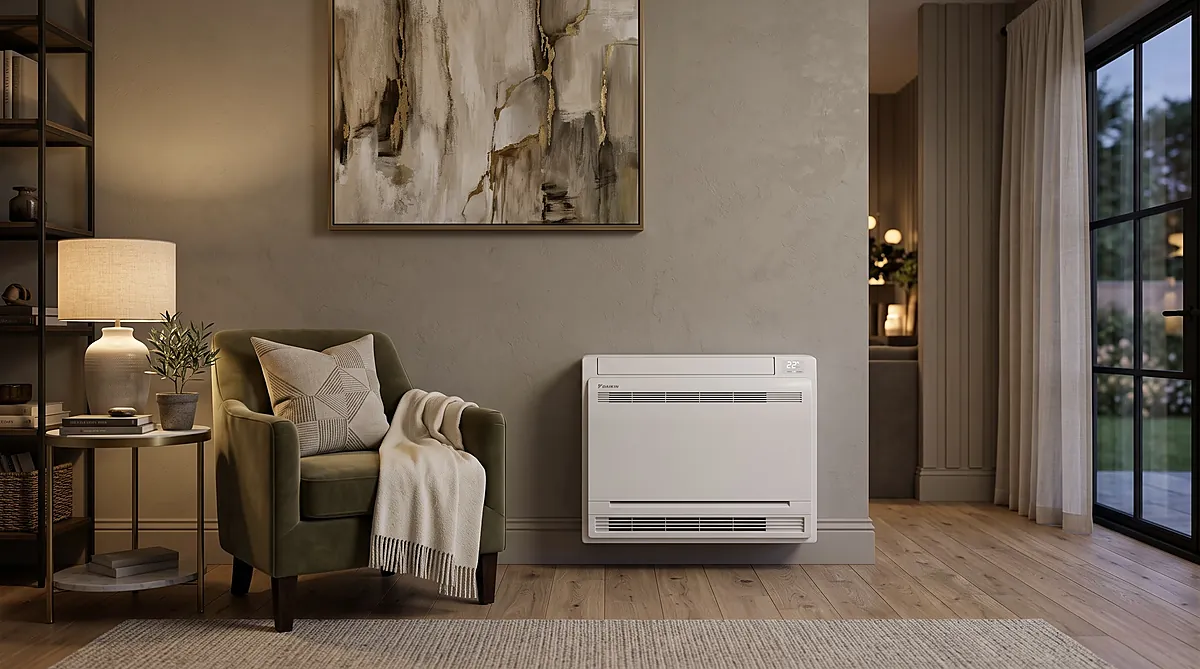

🏠 Residential & Commercial Low-Wall / Under-Ceiling Floor-mounted low wall AC unit and under-ceiling climate console
View 2K

Floor / Low-Wall Console

Radiator Replacement & Under-Ceiling

Versatile low-wall unit that replaces bulky wet radiators with rapid floor-level heating, or mounts under-ceiling in commercial showrooms and workshops where wall and ceiling cavity space is limited.

πŸ“ Placement Low-Wall or Ceiling
πŸ”₯ Heating Floor Level Warmth
πŸ’¨ Airflow Dual Auto-Swing
⚑ Power Range 2.5 – 14.0 kW
Conservatories Showrooms Loft Conversions Trade Counters

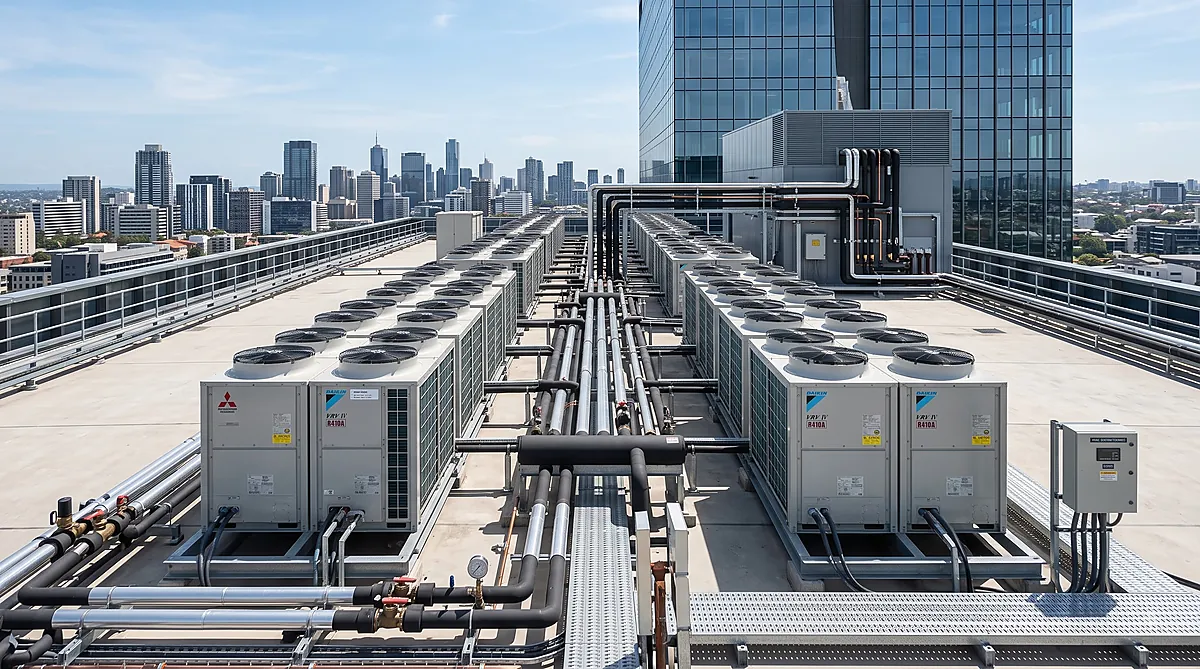

🏒 Commercial & Industrial Simultaneous Heat & Cool Commercial VRF and VRV multi-split heat recovery condensing units
View 2K

VRF / VRV System

Central Heat Recovery Plant

Advanced building-wide variable refrigerant flow systems connecting up to 64 indoor units. Features intelligent heat recovery that transfers heat from IT suites to office floors.

🏒 Modular Scale Up to 64 Indoors
πŸ”„ Heat Recovery Simultaneous H&C
πŸ“ Pipe Network 1,000m Total Run
πŸ“Š BMS Link BACnet / IP & Modbus
Large Office Blocks Hotels Hospitals Commercial HQs

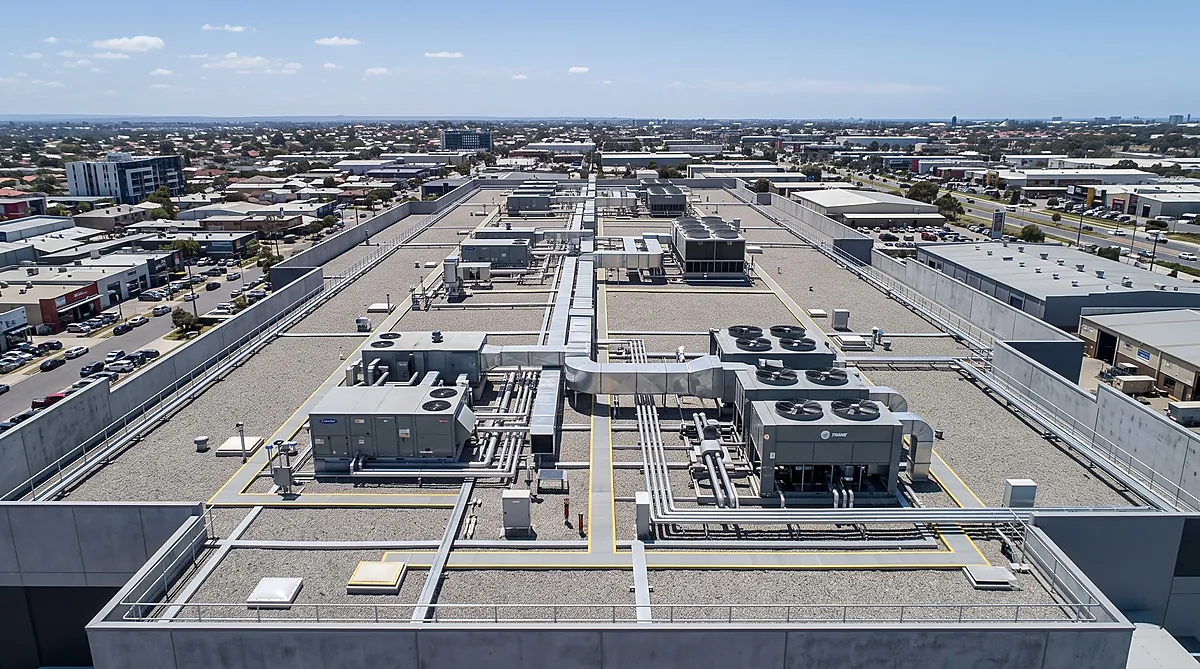

🏒 Commercial & Industrial Zero Indoor Footprint Commercial rooftop packaged AC units installed on roof curb
View 2K

Rooftop Packaged Units

All-in-One Outdoor Packaged HVAC

Heavy-duty self-contained cooling, heating, and ventilation systems mounted externally on roof curbs. Preserves 100% of internal building space with zero indoor noise.

🏭 Capacity 15 – 250+ kW Heavy
πŸ“ Mounting 100% Roof Monobloc
πŸƒ Fresh Air Free-Cool Economiser
πŸ›‘οΈ Enclosure Marine Galvanized
Warehouses Supermarkets Auditoriums Manufacturing

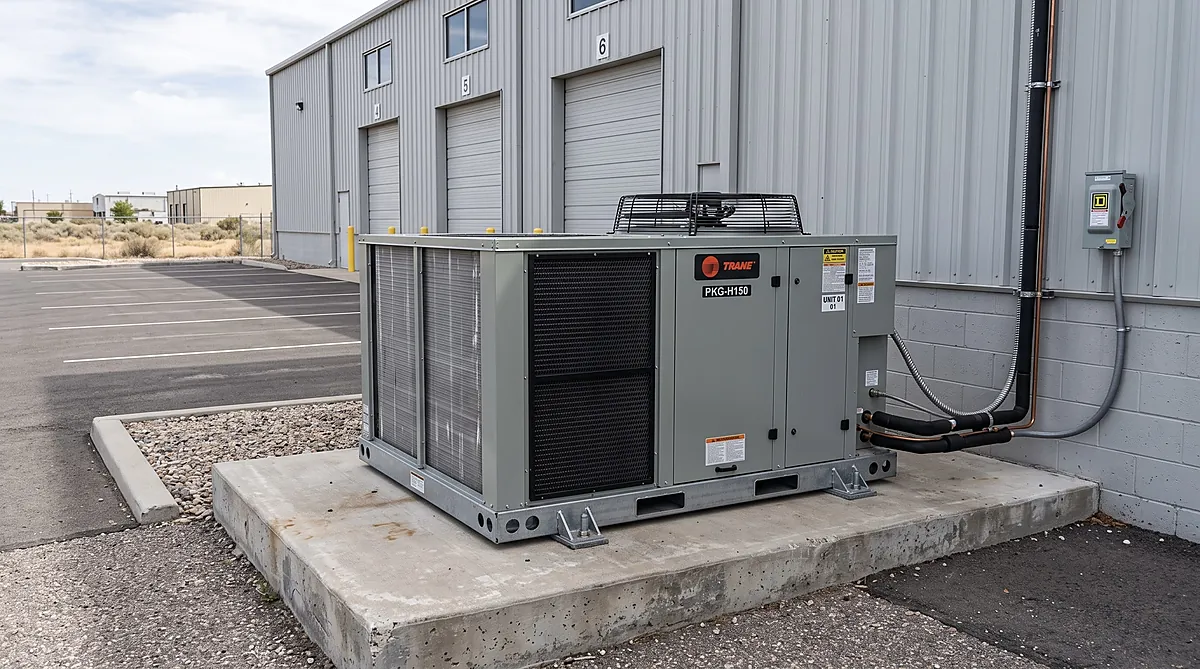

🏒 Commercial & Industrial Heavy Duty Air Handling Commercial packaged ground pad AC units and industrial air handlers
View 2K

Packaged Units & AHU

Heavy Commercial Air Handling

Centralized high-capacity air handling units with dual scroll compressors, deep-pleat filtration, and modular duct distribution for large-scale industrial and cleanroom facilities.

πŸŒͺ️ Airflow 2,000 – 15,000 mΒ³/h
🩺 Filtration MERV / HEPA Grade
βš™οΈ Compressor Tandem Scroll Inverter
πŸ§ͺ Cleanliness Critical Environment
Factories Clean Rooms Logistics Hubs Data Centres

Residential vs. Commercial Comparison Matrix

Compare configurations side-by-side to determine which system matches your floorplan, ceiling design, and heating/cooling loads.

System Type Category Mounting Position Capacity Range Acoustic Level Ideal Application
Wall-Mounted Split Residential & Commercial High Wall 2.5 – 10.0 kW From 19 dB(A) Bedrooms, Lounges, Retail Stores, Surgeries, Offices
Ceiling Cassette Residential & Commercial Flush Ceiling 600Γ—600 / 840Γ—840 2.5 – 14.0 kW 25 – 38 dB(A) Open-plan kitchens, restaurants, corporate boardrooms
Ducted AC (Concealed & Exposed) Residential & Commercial Ceiling Void / Exposed Spiral 3.5 – 25.0 kW < 22 dB(A) Silenced Luxury residences, modern offices, gyms, studios
Multi-Split System Residential & Commercial Multi-Zone (1 Outdoor Condenser) 5.0 – 15.5 kW 21 – 32 dB(A) Multi-room homes, medical clinics, boutique suites
Floor / Low-Wall Console Residential & Commercial Low Skirting Wall / Under-Ceiling 2.5 – 14.0 kW 20 – 35 dB(A) Conservatories, radiator upgrades, showrooms, workshops
VRF / VRV Heat Recovery Commercial & Industrial Multi-Module Modular Plant 22 – 180+ kW Central Plant Sound Multi-storey towers, corporate headquarters, hotels
Rooftop Packaged Units (RTU) Commercial & Industrial Rooftop Weatherproof Curb 15 – 250+ kW Externalized to Roof Warehouses, supermarkets, factories, auditoriums
Packaged Ground-Pad Units & AHU Commercial & Industrial External Concrete Slab / Plant Room 20 – 300+ kW External Monobloc Industrial manufacturing, cleanrooms, data centres
REFCOMβ„’ Certified Climate Engineers β€’ England & Wales

Unsure Which AC System Fits Your Space?

Every space has unique heat loads, insulation levels, and structural airflow dynamics. Our REFCOM-accredited engineers provide comprehensive, zero-obligation on-site surveys across England & Wales β€” calculating precise heat loads and delivering transparent, fixed-price proposals.

REFCOM Accredited Certified, fully insured F-Gas specialists
Free Heat-Load Survey Precise room kW sizing & placement
Fast 48-Hour Quotes Itemised, transparent fixed pricing
England & Wales Wide Rapid local engineer dispatch
100% Free & Zero-Obligation
β€’
No Pushy Sales Calls
β€’
Direct Qualified Engineer Advice
